PVE vGPU Cluster Rollout and Operations Training Plan

Rollout context

• This guide structures PVE plus NVIDIA vGPU deployment into repeatable stages.
• Target model: PVE 8.x with profile-based GPU resource pooling, with host, licensing, and guest workflows aligned.
• Focus is on version alignment, standardized execution, and repeatable technical validation, not one-time boot success.

0. Driver and licensing preparation

1. Confirm the target GPU model’s last supported vGPU version from official NVIDIA vGPU documentation.

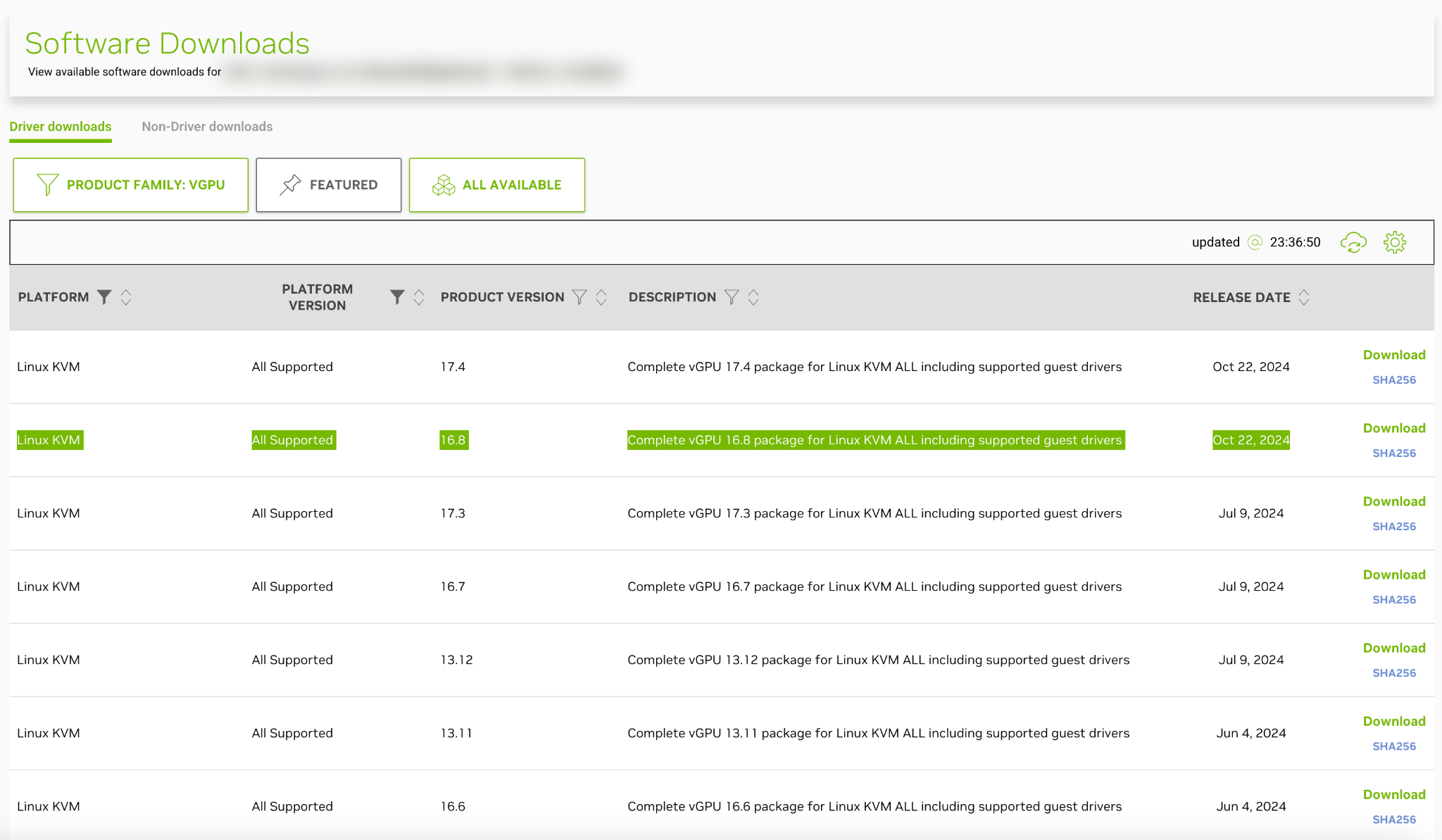

2. Download the matching Linux KVM Host Driver and Guest Driver packages from NVIDIA Licensing.

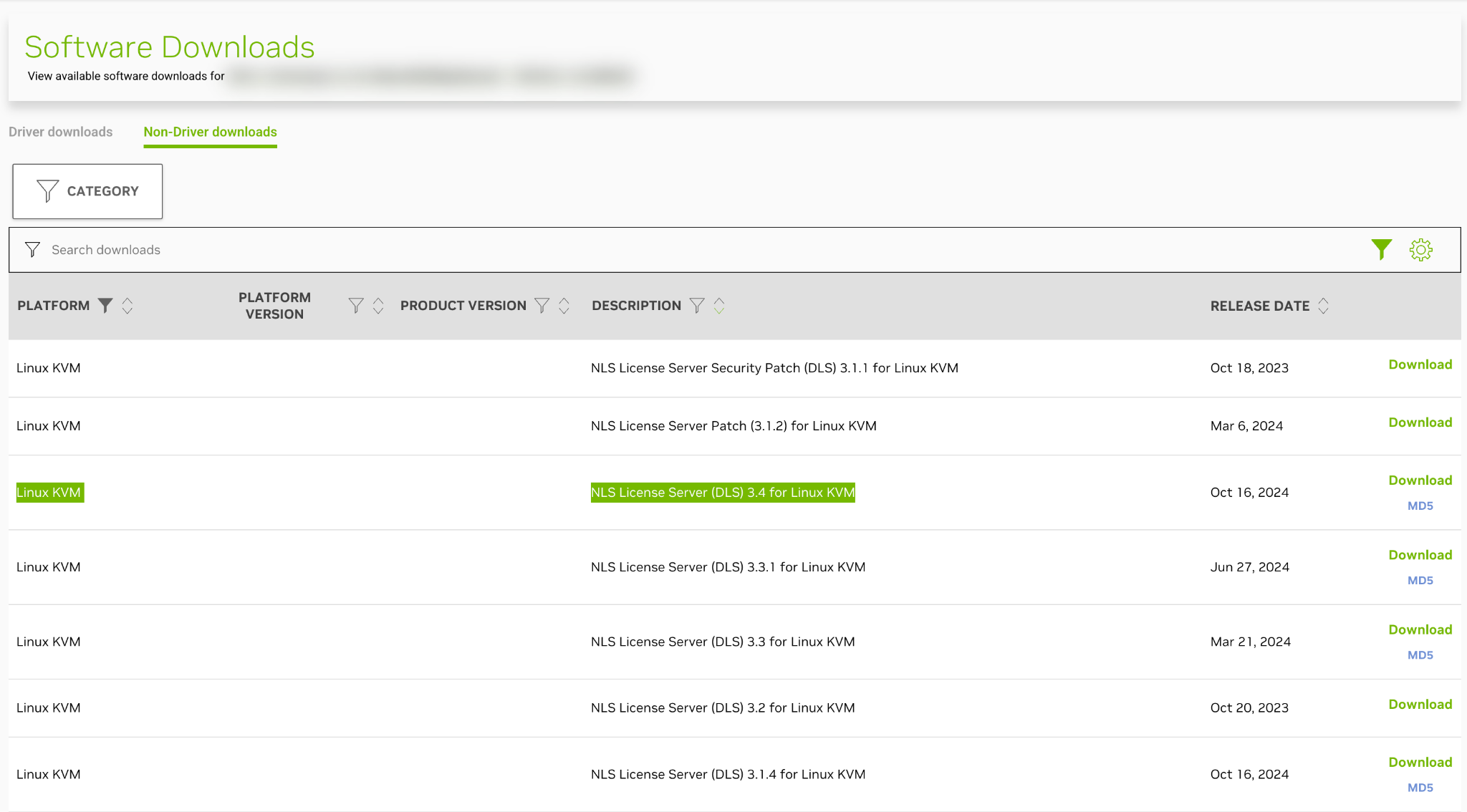

3. Download the matching NLS/DLS License Server for Linux KVM image.

4. Before execution, record host-driver, guest-driver, and license-server versions in one approved change ticket to prevent mixed-version rollout.

1. PVE host setup (IOMMU, vfio, required packages)

• Upgrade host to stable PVE baseline.
• Apply IOMMU kernel parameters and enable vfio modules.
• Install required package: dkms、proxmox-default-headers、mdevctl、build-essential.
• Run update-grub and update-initramfs, then reboot.

# block Open Source version of NVIDIA driver
echo "blacklist nouveau" >> /etc/modprobe.d/blacklist.conf

# vfio module enable
echo -e "vfio\nvfio_iommu_type1\nvfio_pci\nvfio_virqfd" >> /etc/modules

# install passthrough needed packages
apt update
apt install --no-install-recommends -y \
  dkms libc6-dev proxmox-default-headers git build-essential mdevctl

update-grub
update-initramfs -u -k all

2. vGPU unlock and SR-IOV service integration

• Configure vgpu_unlock-rs and service-level preload LD_PRELOAD strategy where required by deployment policy.
• Register nvidia-sriov.service and enable startup service for sriov-manage -e ALL execution.
• Validate on test node before production expansion.

systemctl daemon-reload
systemctl enable --now nvidia-sriov.service
systemctl status nvidia-sriov.service

3. Host driver installation and mdev validation

• After reboot, verify GPU discovery with lspci -d 10de:.
• Install host driver with --dkms mode.
• Reboot and validate available profiles via mdevctl types.

lspci -d 10de:
chmod +x NVIDIA-Linux-*.run
./NVIDIA-Linux-*.run --dkms
mdevctl types

4. Deploy NVIDIA DLS license service VM

• Create Linux VM (you can start with Do not use any media) and then import license service image (.qcow2).
• Upload nls-*.qcow2 to PVE storage path (for example /var/lib/vz/template/iso).
• Use qm importdisk and attach as primary virtual disk (virtio0); resize as needed.
• Start VM, open HTTPS interface, import instance token, and upload license artifacts downloaded from NVIDIA.

qm importdisk 999 /var/lib/vz/template/iso/nls-3.4.0-bios.qcow2 Data
qm disk resize 999 virtio0 20G

5. Windows guest onboarding and license binding

• Create Windows VM (Machine: q35、BIOS: OVMF、CPU: host), plus VirtIO driver media via ISO file.
• Add PCI device with matching NVIDIA raw device and MDev type profile (e.g. GRID P4-2Q).
• Install Windows baseline, then VirtIO/guest agent, then NVIDIA guest driver.
• Apply Client Config Token from DLS to expected path and restart NVIDIA Display Container LS service.

6. Technical validation checklist

1. Functional checks: mdevctl types, guest-driver state, license state, and GPU workload behavior are normal (e.g. nvidia-smi).
2. Stability checks: repeated reboot and stress tests preserve MDev attach behavior.
3. Restore checks: sampled VM backup/restore preserves license and MDev usability.
4. Operational consistency checks: different operators can reproduce new-VM onboarding with same SOP.

Practical guidance

• In mixed-GPU environments, complete single-node rollout and stress validation first, then expand.
• Upgrade sequence should follow host driver -> DLS -> guest driver, with explicit rollback plan.
• Feed rollout steps, validation outcomes, and failure cases into internal knowledge base for scale-out reuse.

References

• Proxmox VE Wiki: NVIDIA vGPU on Proxmox VE
  https://pve.proxmox.com/wiki/NVIDIA_vGPU_on_Proxmox_VE
• Proxmox VE Wiki: PCI Passthrough
  https://pve.proxmox.com/wiki/PCI_Passthrough
• Proxmox VE vzdump Documentation
  https://pve.proxmox.com/pve-docs/vzdump.1.html
• Proxmox Backup Server Documentation
  https://pbs.proxmox.com/docs/
• NVIDIA vGPU Client Licensing User Guide
  https://docs.nvidia.com/vgpu/latest/grid-licensing-user-guide/
